ITX H61 V301 Computer Motherboard, DDR3 1066 1333 1600Mhz LGA 1155 PC Motherboard, Support NVME M.2 WiFi M.2, ITX Gaming Motherboard with VGA + + USB2.0

Price: $40.51
(as of Jun 16, 2024 05:30:06 UTC – Details)

1. ITX Structure: This desktop motherboard adopts ITX structure, which supports LGA1155 socket and for Core i7, i5, i3, for Pentium, for Celeron processor.
2. Dual Channel DDR3: This ITX motherboard is designed with 2 DDR3 memory slot which supports effective frequency DDR4 1066 1333 1600Mhz with a maximum capacity of 16GB.
3. HD Output: This DDR3 motherboard is equipped with VGA and HD Multimedia Interface output, which supports HD video output, bringing high definition visual experience.
4. Multi Phase Power: This ITX motherboard adopts multi phase power,and 4+24Pin power supply interface to make sure stable performance of circuit board.
5. Rich Interfaces: This mining motherboard is equipped with 6 USB 2.0, 4 SATA 2.0 and 1 M. 2 NVMe. The motherboard adopts premium printed circuit board material, high and stable performance.

Spec:
Item Type: Desktop Motherboard
Material: Printed Circuit Board, Metal
Inbuilt Battery: 240mAh CR2032 x 1
Board Type: ITX H61 V301 ITX H61 V301
ITX Motherboard Size: Approx. 170 x 170mm 6.69 x 6.69in ( Manual Measurement, Slight Error May Exist )
CPU Slot Type: LGA1155
Number Of Memory Slots: 2 x 8G DDR4 1066 1333 1600
Storage: 1 x M.2 NVMe, 4 x SATA 2.0
Wireless Network: 1 x M.2 WiFi(NGFF Protocol) 2230
Graphics Card Slot: PCIE 2.0 X16
Sound Card: Dual Channel Stereo Sound Card
Network Card: 1 x Realtek 8106E 100M Network Card
Video: 1 x VGA, 1 x HD Multimedia Interface,
USB Interface: 6 x USB2.0, 1 x USB2.0 Pin
Power Interface: 4PIN + 24PIN
Other: 1 x DEBUG, 1 x F PANEL, 1 x AUDIO, 1 x SPK

How to Use:
Install and use

packing list:

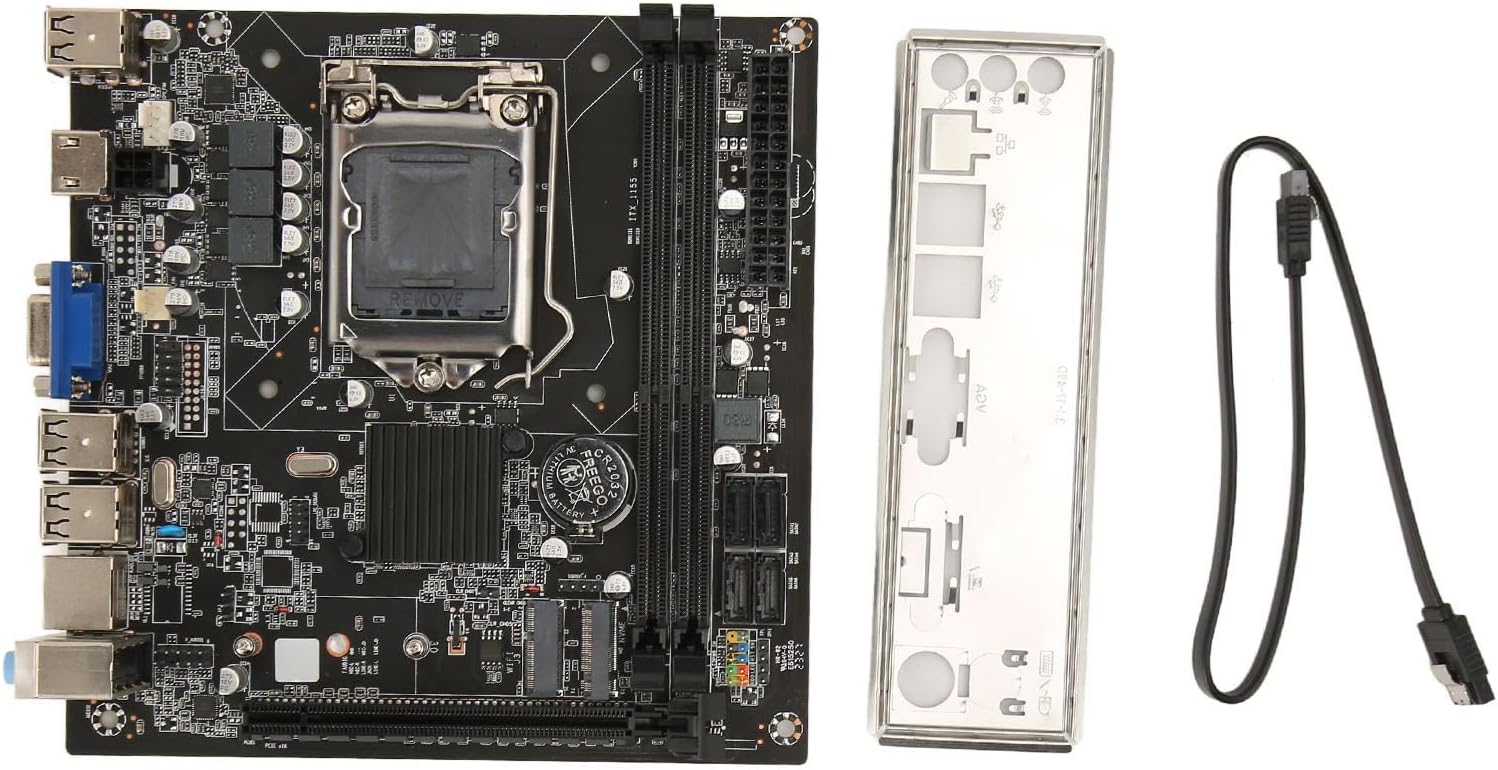

1 x Desktop Motherboard
1 x Metal Plate
1 x Connecting Cable

ITX Structure: This desktop motherboard adopts ITX structure, which supports LGA1155 socket and for Core i7, i5, i3, for Pentium, for Celeron processor.
Dual Channel DDR3: This ITX motherboard is designed with 2 DDR3 memory slot which supports effective frequency DDR4 1066 1333 1600Mhz with a maximum capacity of 16GB.
HD Output: This DDR3 motherboard is equipped with VGA and HD Multimedia Interface output, which supports HD video output, bringing high definition visual experience.
Multi Phase Power: This ITX motherboard adopts multi phase power,and 4+24Pin power supply interface to make sure stable performance of circuit board.
Rich Interfaces: This mining motherboard is equipped with 6 USB 2.0, 4 SATA 2.0 and 1 M. 2 NVMe. The motherboard adopts premium printed circuit board material, high and stable performance.
